Brand: Enactus
Place Of Origin: China
Packaging: Carton,outer package as request
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 1000000 Piece/Pieces per Month
Port: shanghai,guangzhou,ningbo
Payment Type: L/C,T/T,D/P,D/A,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW

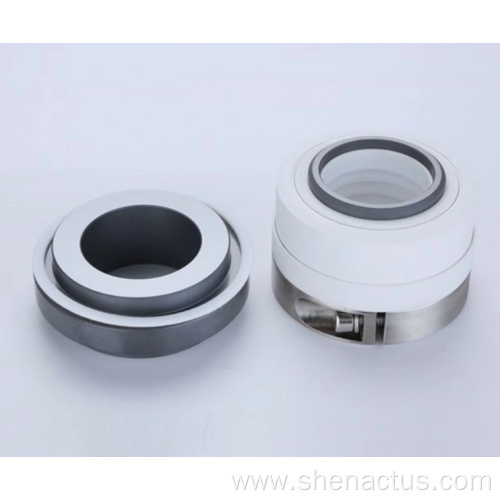

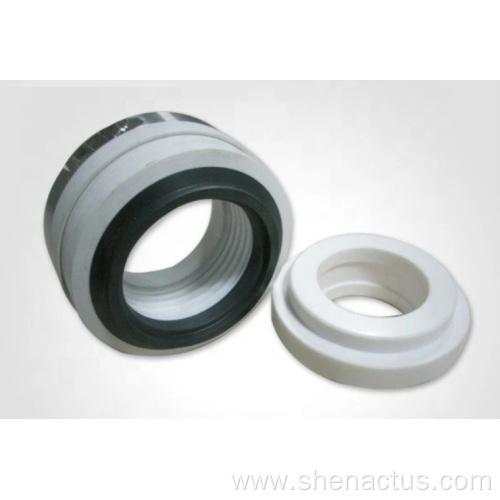

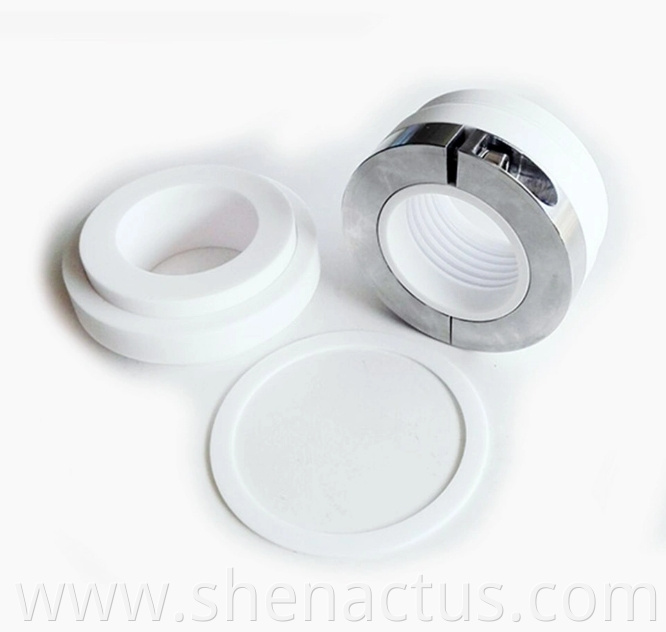

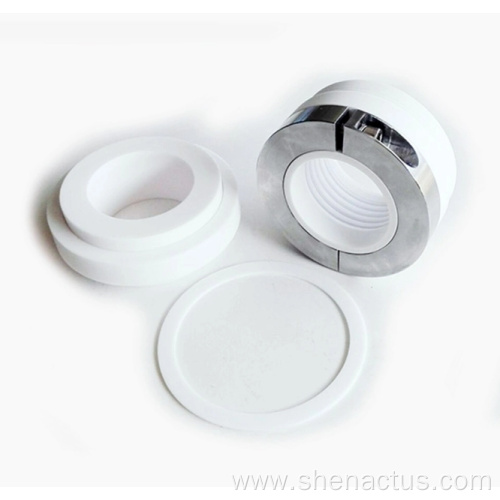

The John Crane Mechanical Seal Type 10R and 10T are two different types of Mechanical Seals manufactured by John Crane, a global leader in rotating equipment solutions.The Type 10R is a single, balanced seal designed for general-purpose applications. It features a non-pusher elastomer bellows design, which allows for high performance and reliability in various operating conditions. This seal is commonly used in pumps, mixers, and other rotating equipment.
On the other hand, the Type 10T is a dual, balanced mechanical seal that provides extra protection against leakage. It features a non-pusher elastomer bellows design on the inboard seal and a flexible graphite primary ring on the outboard seal. This dual seal arrangement helps to prevent process fluid from leaking into the atmosphere, making it suitable for applications with hazardous or environmentally sensitive fluids.Both the Type 10R and 10T mechanical seals are known for their durability, reliability, and ease of installation. They are designed to withstand high temperatures, pressures, John Crane Cartridge Seal and shaft speeds, making them suitable for a wide range of industrial applications.
Operating limit:
Pressure: ≤ 1.3MPa
Speed: ≤ 15m/s
Temperature: -35ºC ~+120ºC
Material:
Rotary Ring (Filled PTFE/SiC)
Stationary Ring (99%Ceramic/SiC)
Secondary SeaI(PTFE)
Spring & Other Parts(SUS304/SUS316 /Titanium/Hastelloy-C)
D(mm) D(in) D3 D6 D7 D10 L3 L6 L10 T 16 0.75 54 37.5 36.51 48 31 4.8 8 0.8 18 54 37.5 36.51 48 31 4.8 8 0.8 20 0.875 57 40.5 39.69 51 31 4.8 8 0.8 22 57 40.5 39.69 51 31 4.8 8 0.8 24 1 61 43.5 42.86 54 33 4.8 8 0.8 25 61 43.5 42.86 54 33 4.8 8 0.8 28 1.125 67 51.5 50.8 61 36 5.5 9.5 1.6 30 1.25 70 55 53.98 68 37 6.4 9.5 1.6 32 70 55 53.98 68 37 6.4 9.5 1.6 33 1.375 73 58 57.15 71 38 6.4 9.5 1.6 35 73 58 57.15 71 38 6.4 9.5 1.6 38 1.5 76 64.5 63.5 77 38 6.4 9.5 1.6 40 1.625 80 67.5 66.68 80 40 6.4 9.5 1.6 43 1.75 83 71 69.85 83 40 6.4 9.5 1.6 45 83 71 69.85 83 40 6.4 9.5 1.6 1.875 86 74 73.03 90 43 6.4 12.7 1.6 48 2 89 80 79.38 96 43 6.4 12.7 1.6 50 89 80 79.38 96 43 6.4 12.7 1.6 53 2.125 103 83.5 82.55 99 53 6.4 12.7 1.6 55 2.25 107 86.5 85.73 102 53 6.4 12.7 1.6 58 2.375 110 89.5 88.9 106 53 6.4 12.7 1.6 60 110 89.5 88.9 106 53 6.4 12.7 1.6 63 2.5 113 93 92.08 109 53 6.4 12.7 1.6 65 2.625 116 96 95.25 112 53 6.4 12.7 1.6 68 2.75 118 99 98.43 115 53 6.4 12.7 1.6 70 118 99 98.43 115 53 6.4 12.7 1.6 2.875 122 102.5 101.6 118 53 6.4 12.7 1.6 75 3 126 104 103.17 120 53 6.4 12.7 1.6 80 3.25 150 115 114.3 131 73 6.4 12.7 1.6 85 3.5 156 121.5 120.65 137 73 6.4 12.7 1.6 90 3.75 163 128 127 144 73 6.4 12.7 1.6 95 163 128 127 144 73 6.4 12.7 1.6 100 4 169 137.5 136.53 153 73 6.4 12.7 1.6
Product Categories : Mechanical Seals Replacement > John Crane Mechanical Seal
