Brand: Enactus
Brand Name: Enactus
Size: Customized Size
Speed: ≤15m/s
Application: Clean water, sewage water, Oil and other moderately corrosive fluids
Pressure: ≤2.5MPa
Temperature: -20ºCto+180ºC
Packaging: Carton,outer package as request
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 1000000 Piece/Pieces per Month
HS Code: 8484200090
Port: shanghai,guangzhou,ningbo
Payment Type: L/C,T/T,D/P,D/A,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW

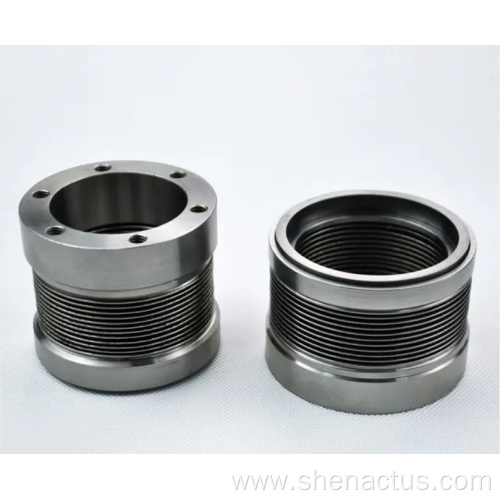

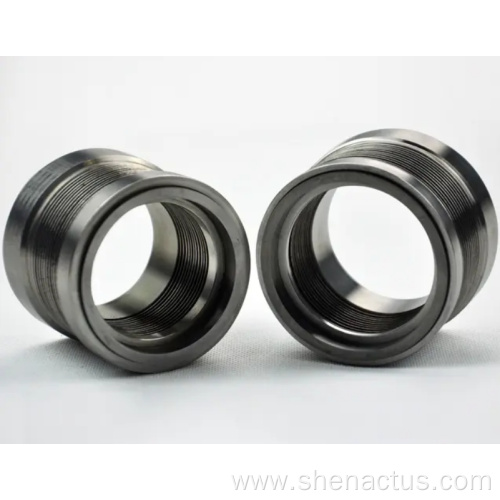

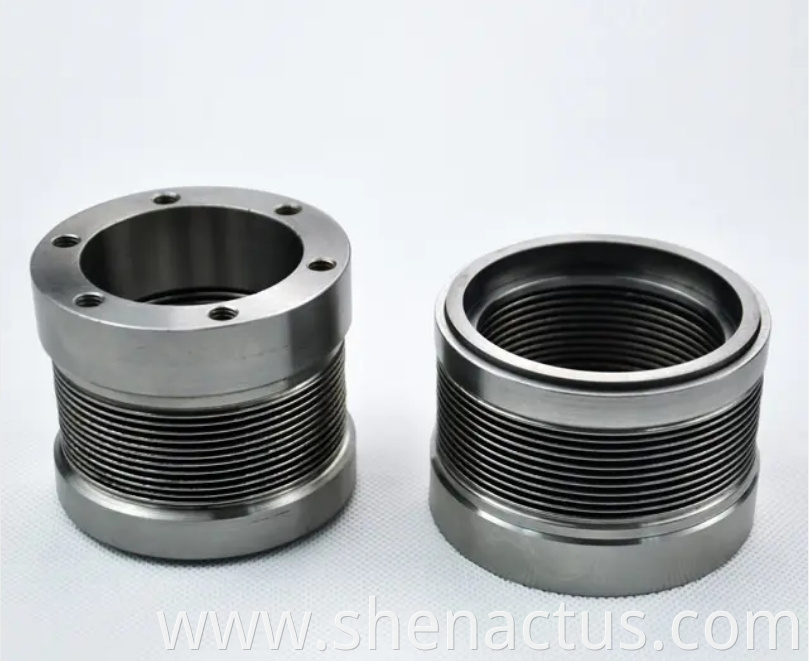

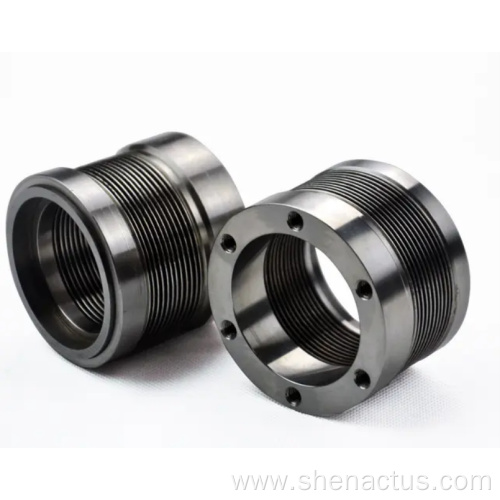

A metal Bellows Mechanical Seal is a type of sealing device designed specifically for high-speed pumps. It consists of a metal bellows, which is a flexible component that can expand and contract, and is made of a durable and corrosion-resistant material such as stainless steel.The metal bellows mechanical seal is used to prevent leakage of fluids in high-speed pump applications. It is installed in the pump housing and creates a seal between the rotating shaft and the stationary housing. This prevents the fluid from escaping and maintains the desired pressure and flow rate.The metal bellows is designed to withstand the high speeds and pressures encountered in these pumps. It can handle the dynamic movements of the rotating shaft while maintaining a tight seal. The bellows is also resistant to wear and tear, ensuring a long service life.John Crane Mechanical Seal,Silicon Carbide Seal.
Design/Structure
1. Multi-Spring Mechanical Seal
2. Balanced and static seal
3. Applied to high speed operating conditions
4. Easy for installation and maintenance
5. Usually used for the oil seal on the side of the high-speed gear box.
Operating Conditions
1. Pressure: 0~2MPa
2. Temperature: -40~180°C
3. Speed: up to 25000r/min
4. Media: all kinds of chemical fluids
Materials
1. Friction Pairs: Carbon Graphite, TC, SIC, SSIC, etc.
2. O-ring: EPDM, VITON, AFRAZ, etc.
3. Metal Parts: 304/316/316L
Quality Assure
1. Get the ISO9001 certification
2. Awarded the high-tech industry
3. First level supplier of China Petroleum and China Petrochemical
4. Provide customers with a complete seal and system solution
5. Has the world-class level of dynamic pressure seal laboratory
6. Has advanced sealing design software
Application
Our products have been widely applied to petroleum, chemical fiber, fertilizer, oil refining, papermaking, nuclear power, power plant, metallurgy, food, pharmaceuticals, etc. Main products are mechanical seal, dry gas seal and many kinds of seal control systems, applying to rotating equipments.
Product Categories : Mechanical Seals > Metal Bellow Mechanical Seals
