Brand: Enactus
Place Of Origin: China
Packaging: Carton,outer package as request
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 1000000 Piece/Pieces per Month
Port: shanghai,guangzhou,ningbo
Payment Type: L/C,T/T,D/P,D/A,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW

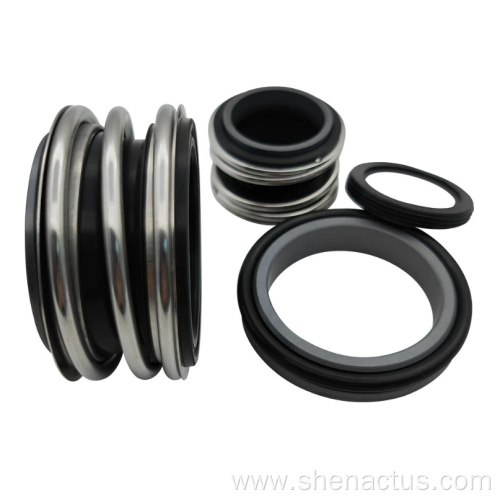

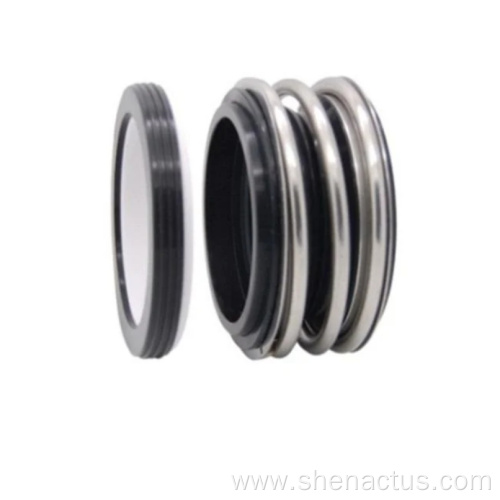

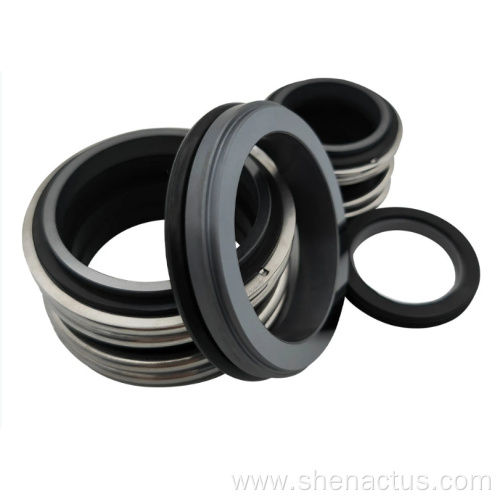

The design of the MG1 seal allows for easy installation and maintenance. It features a self-cleaning mechanism that helps to prevent clogging and buildup of solids. The balanced design helps to reduce seal face wear and prolong the life of the seal.Burgmann M7N Mechanical Seal,Burgmann Mechanical Seal price,Burgmann Seals.
Working Conditions
Mediums: All types of rotating equipment,such us centrifugal
pumps.agitators,for most general and light chemical duties ,
wherever an elastomer Secondary Seal can be used .
Temperature: -30ºC~200ºC
Pressure: ≤1.2MPa
Speed: ≤12m/Sec
Combined Materials
Stationary Ring (Ceramic / Sic / TC)
Rotary Ring (Carbon / Sic / TC)
Secondary Seal (NBR / EPDM / Viton)
Spring and Punched Parts ( Steel )

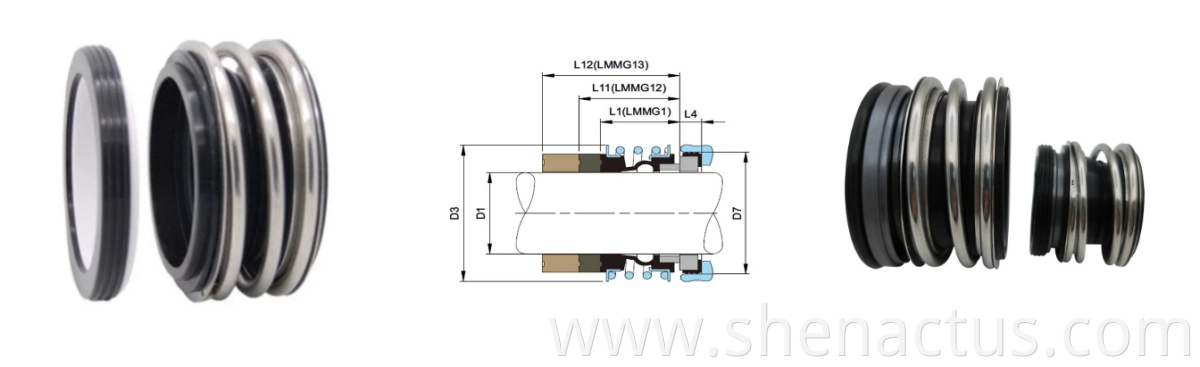

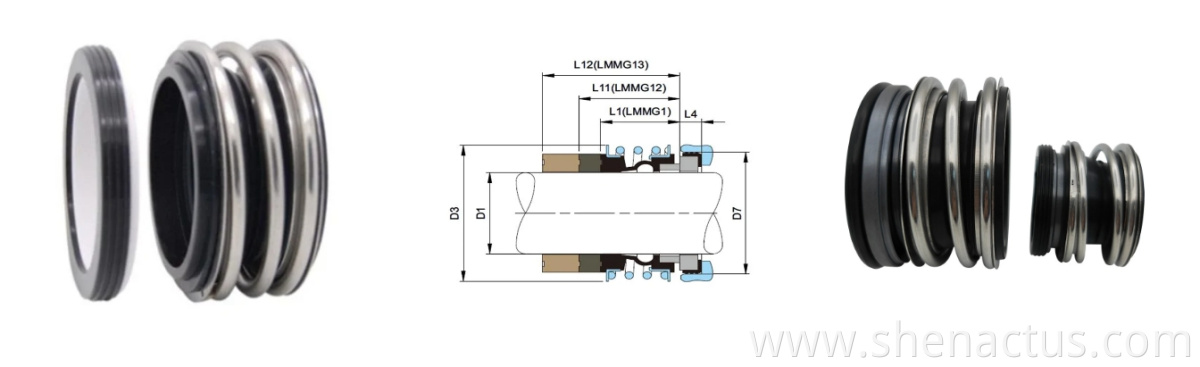

D1(mm) Size Code D3 D7 L4 L1 L11 L12 10 0100 24.00 21.00 6.60 14.50 25.90 33.40 12 0120 24.00 23.00 6.60 15.00 25.90 33.40 14 0140 28.00 25.00 6.60 17.00 28.40 33.40 15 0150 28.00 27.00 6.60 17.00 28.40 33.40 16 0160 28.00 27.00 6.60 17.00 28.40 33.40 18 0180 31.00 33.00 7.50 19.50 30.00 37.50 20 0200 36.00 35.00 7.50 21.50 30.00 37.50 22 0220 36.00 37.00 7.50 21.50 30.00 37.50 24 0240 40.50 39.00 7.50 22.50 32.50 42.50 25 0250 41.00 40.00 7.50 23.00 32.50 42.50 28 0280 47.00 43.00 7.50 26.50 35.00 42.50 30 0300 47.00 45.00 7.50 26.50 35.00 42.50 32 0320 51.00 48.00 7.50 27.50 35.00 47.50 33 0330 51.00 48.00 7.50 27.50 35.00 47.50 35 0350 55.00 50.00 7.50 28.50 35.00 47.50 38 0380 58.00 56.00 9.00 30.00 36.00 46.00 40 0400 60.00 58.00 9.00 30.00 36.00 46.00 43 0430 63.30 61.00 9.00 30.00 36.00 51.00 45 0450 65.00 63.00 9.00 30.00 36.00 51.00 48 0480 69.00 66.00 9.00 30.50 36.00 51.00 50 0500 71.00 70.00 9.50 30.50 38.00 50.50 53 0530 76.00 73.00 11.00 33.00 36.50 59.00 55 0550 78.00 75.00 11.00 35.00 36.50 59.00 58 0580 82.00 78.00 11.00 37.00 41.50 59.00 60 0600 85.00 80.00 11.00 38.00 41.50 59.00 65 0650 90.00 85.00 11.00 40.00 41.50 69.00 68 0680 94.00 90.00 11.30 40.00 48.70 68.70 70 0700 97.00 92.00 11.30 40.00 48.70 68.70 75 0750 102.00 97.00 11.30 40.00 48.00 68.70 80 0800 108.00 105.00 12.00 40.00 48.00 78.00 85 0850 117.00 110.00 14.00 41.00 46.00 76.00 90 0900 126.00 115.00 14.00 45.00 51.00 76.00 95 0950 131.00 120.00 14.00 46.00 51.00 76.00 100 1000 136.00 125.00 14.00 47.00 51.00 76.00
Product Categories : Mechanical Seals Replacement > Burgmann Mechanical Seal
