Brand: Enactus
Brand Name: Enactus
Size: 25-140mm
Temperature: -20 ~ 180ºC
Speed: up to 20m/S
Application: Oil and gas industry, chemical industry, power industry, steel industry, pharmaceutical industry.
Pressure: 0-20bar
Packaging: Carton,outer package as request
Transportation: Ocean,Land,Air,Express,Express
Place of Origin: China
Supply Ability: 100000 Piece/Pieces per Month
HS Code: 8484200090
Port: shanghai,guangzhou,ningbo
Payment Type: L/C,T/T,D/P,D/A,Paypal,Money Gram,Western Union,D/A
Incoterm: FOB,CFR,CIF,EXW

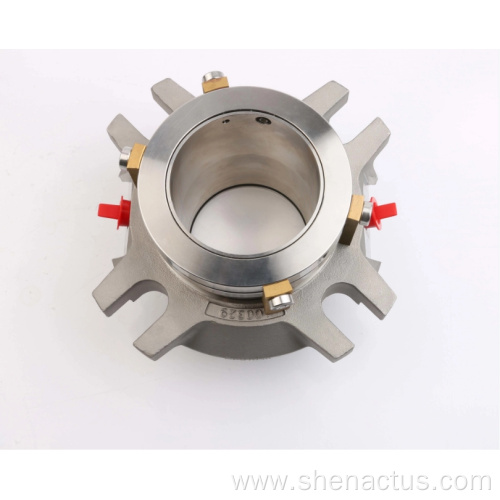

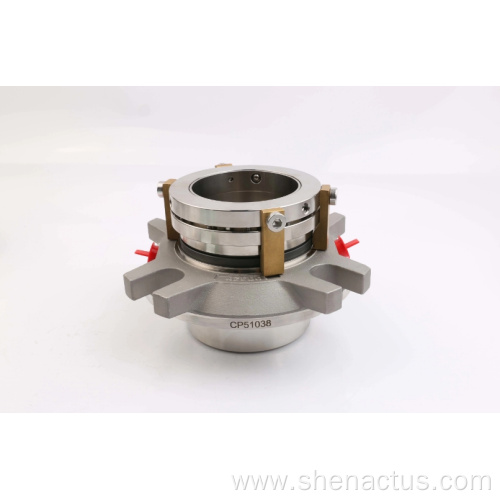

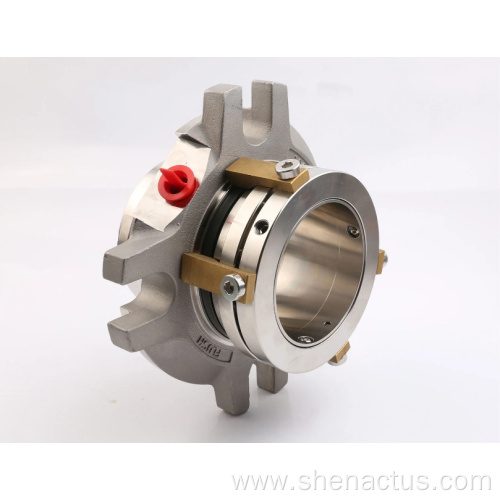

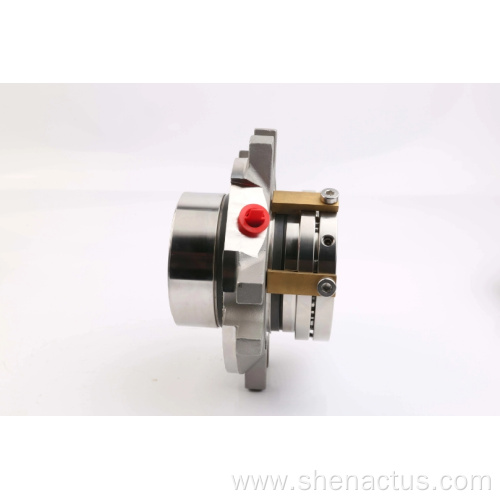

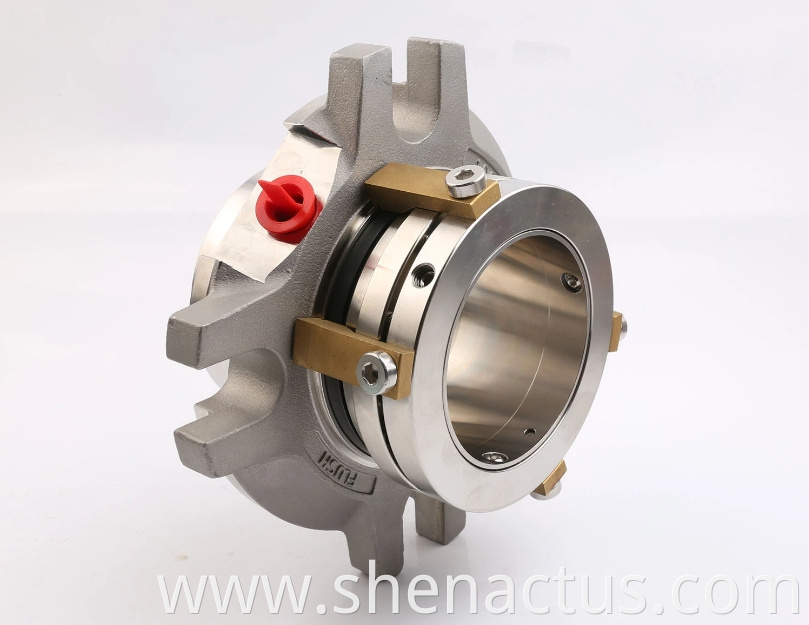

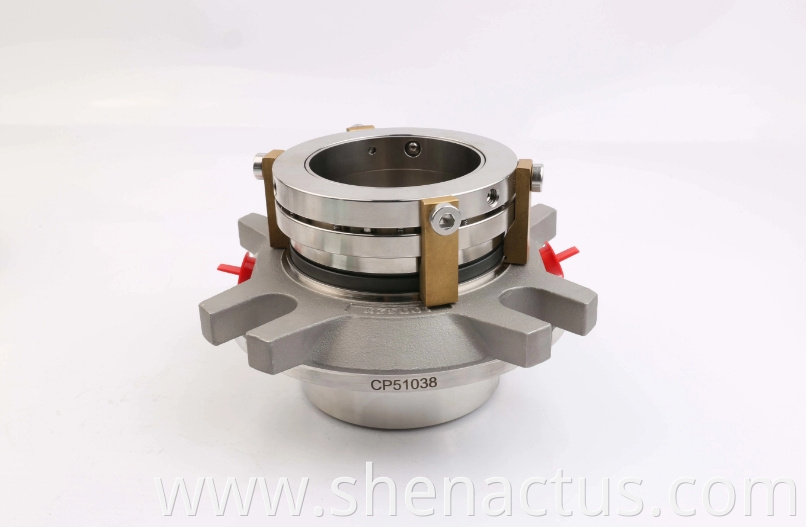

EDM double cartridge Mechanical Seals offer several advantages over other types of seals. They provide a higher level of sealing performance, reducing the risk of leakage and downtime. They also have a longer service life, resulting in lower maintenance and replacement costs.Single Spring Mechanical Seals.

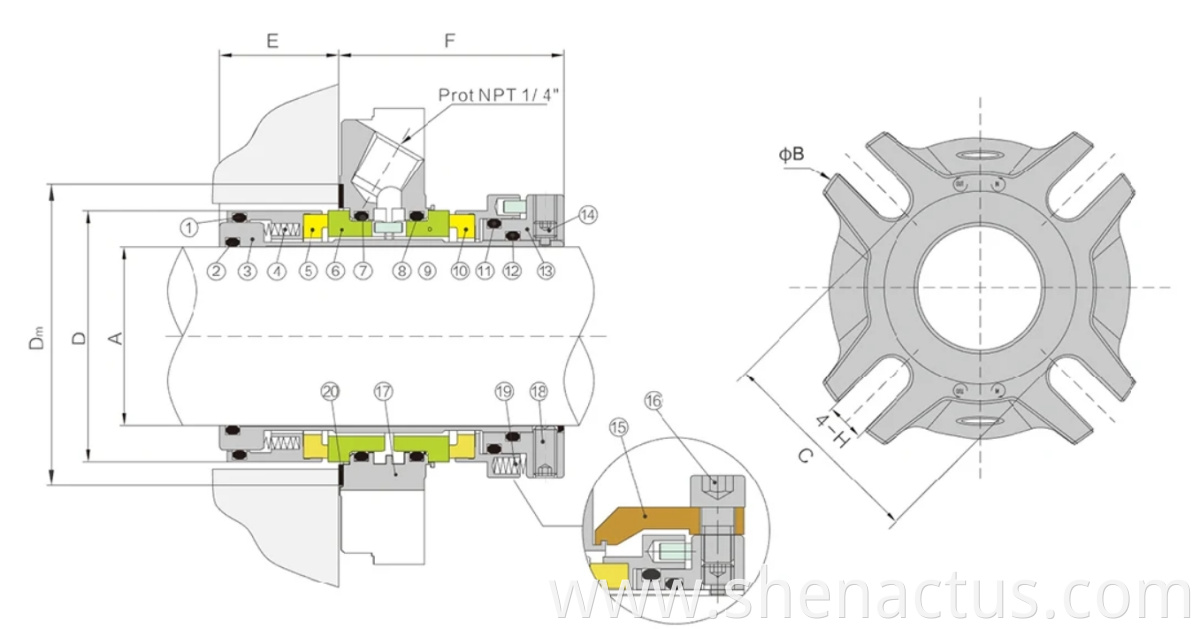

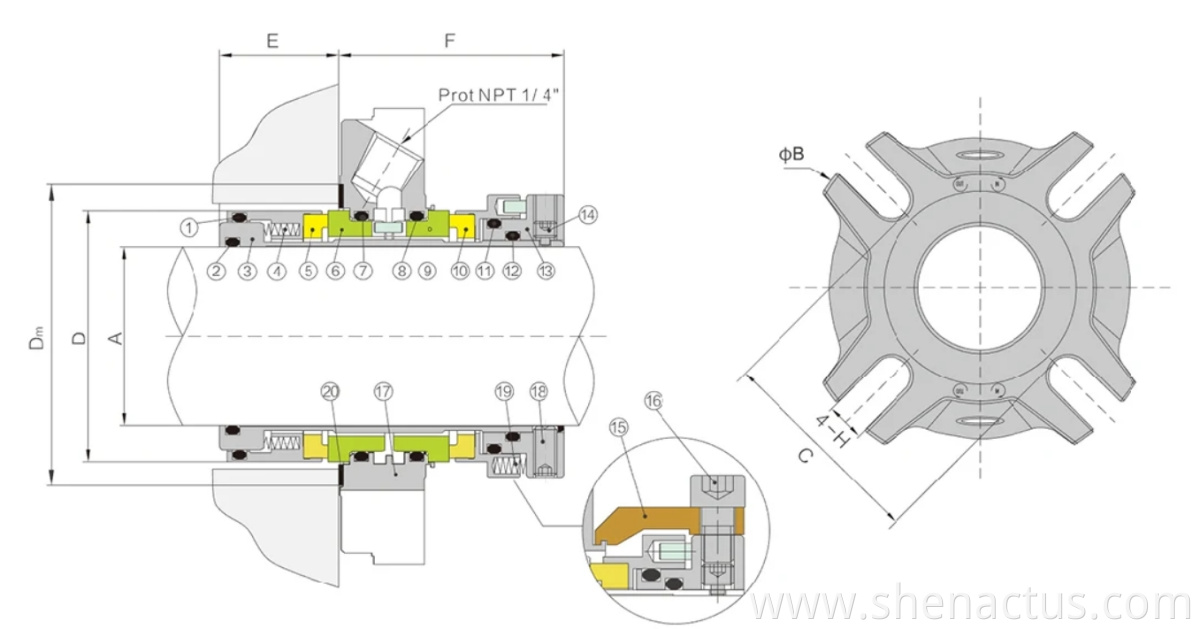

| NO | Decription | Material | NO | Decription | Material |
| 1 | O-Ring | EPR/FKM/Aflas/Kalrez | 11 | O-Ring | EPR/FKM/Aflas/Kalrez |
| 2 | O-Ring | EPR/FKM/Aflas/Kalrez | 12 | O-Ring | EPR/FKM/Aflas/Kalrez |
| 3 | Shaft Sleeve | 316SS | 13 | Clamp Ring | 316SS |
| 4 | Spring | Alloy 276 | 14 | Anti-tamper Screw | 316SS |
| 5 | Inboard Rotary Face | Carbon/SSIC/TC | 15 | Setting Clip | Brass |
| 6 | Inboard Stationary Face | SSIC/TC | 16 | Clip Screw | 316SS |
| 7 | O-Ring | EPR/FKM/Aflas/Kalrez | 17 | Gland | 316SS |
| 8 | O-Ring | EPR/FKM/Aflas/Kalrez | 18 | Drive Screw | 316SS |
| 9 | Outboard Stationary Face | SSIC/TC | 19 | Spring | Alloy 276 |
| 10 | Outboard Rotary Face | Carbon/SSIC/TC | 20 | Gasket | AF1 |
| φA | φB | C | φD | φDm | E | F | H |
| 24 | 110.0 | 60.5 | 38.0 | 56.0 | 31.1 | 51.0 | 13.2 |
| 25 | 110.0 | 60.5 | 39.4 | 56.0 | 31.1 | 51.0 | 13.2 |
| 28 | 110.0 | 60.5 | 42.6 | 58.0 | 31.1 | 51.0 | 13.2 |
| 30 | 110.0 | 63.5 | 44.0 | 61.5 | 31.1 | 51.0 | 13.2 |
| 32 | 110.0 | 63.5 | 46.0 | 61.5 | 31.1 | 51.0 | 13.2 |
| 33 | 110.0 | 63.5 | 47.0 | 61.5 | 31.1 | 51.0 | 13.2 |
| 35 | 110.0 | 67.0 | 49.0 | 65.0 | 31.1 | 51.0 | 13.2 |
| 38 | 127.0 | 72.0 | 55.8 | 70.0 | 29.1 | 56.3 | 14.2 |
| 40 | 127.0 | 72.0 | 55.8 | 70.0 | 29.1 | 56.3 | 14.2 |
| 43 | 127.0 | 72.0 | 59.0 | 71.0 | 29.1 | 56.3 | 14.2 |
| 45 | 133.0 | 77.0 | 62.2 | 75.0 | 29.1 | 56.3 | 14.2 |
| 48 | 133.0 | 77.0 | 65.4 | 75.0 | 29.1 | 56.3 | 14.2 |
| 50 | 133.0 | 77.0 | 65.4 | 75.0 | 29.1 | 56.3 | 14.2 |
| 53 | 139.0 | 86.0 | 68.5 | 83.0 | 31.3 | 56.3 | 14.2 |
| 55 | 146.0 | 94.0 | 71.7 | 92.0 | 31.3 | 56.3 | 17.5 |
| 58 | 146.0 | 94.0 | 74.9 | 92.0 | 31.3 | 56.3 | 17.5 |
| 60 | 155.0 | 100.0 | 78.1 | 92.0 | 31.3 | 56.3 | 17.5 |
| 63 | 178.0 | 109.5 | 84.1 | 108.0 | 28.1 | 63.8 | 17.5 |
| 65 | 178.0 | 109.5 | 87.3 | 108.0 | 28.1 | 63.8 | 17.5 |
| 70 | 178.0 | 109.5 | 90.5 | 108.0 | 28.1 | 63.8 | 17.5 |
| 75 | 190.5 | 125.0 | 96.8 | 124.0 | 28.1 | 63.8 | 17.5 |
| 80 | 190.5 | 125.0 | 100.0 | 124.0 | 28.1 | 63.8 | 17.5 |
| 85 | 203.0 | 135.0 | 106.4 | 133.0 | 28.1 | 63.8 | 17.5 |
| 90 | 216.0 | 150.0 | 112.7 | 146.0 | 28.1 | 63.8 | 20.0 |
| 95 | 216.0 | 150.0 | 119.1 | 146.0 | 28.1 | 63.8 | 20.0 |
| 100 | 229.0 | 168.0 | 122.2 | 165.0 | 28.1 | 63.8 | 20.0 |
Product Categories : Mechanical Seals > Double Cartridge Mechanical Seals
