Brand: Enactus
Brand Name: Enactus
Size: 25-140mm
Temperature: -20 ~ 180ºC
Speed: up to 20m/S
Application: Oil and gas industry, chemical industry, power industry, steel industry, pharmaceutical industry.
Pressure: 0-20bar
Packaging: Carton,outer package as request
Transportation: Ocean,Land,Air,Express,Express
Place of Origin: China
Supply Ability: 100000 Piece/Pieces per Month
HS Code: 8484200090
Port: shanghai,guangzhou,ningbo
Payment Type: L/C,T/T,D/P,D/A,Paypal,Money Gram,Western Union,D/A
Incoterm: FOB,CFR,CIF,EXW

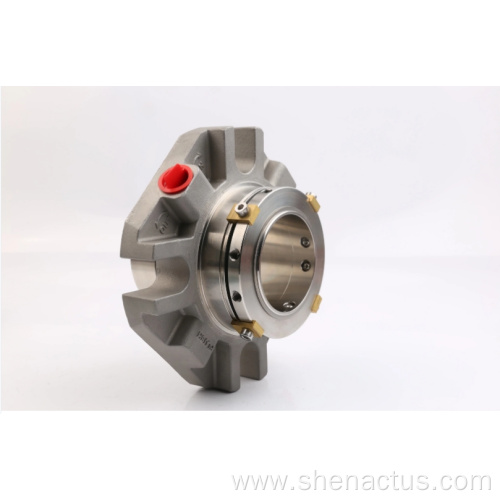

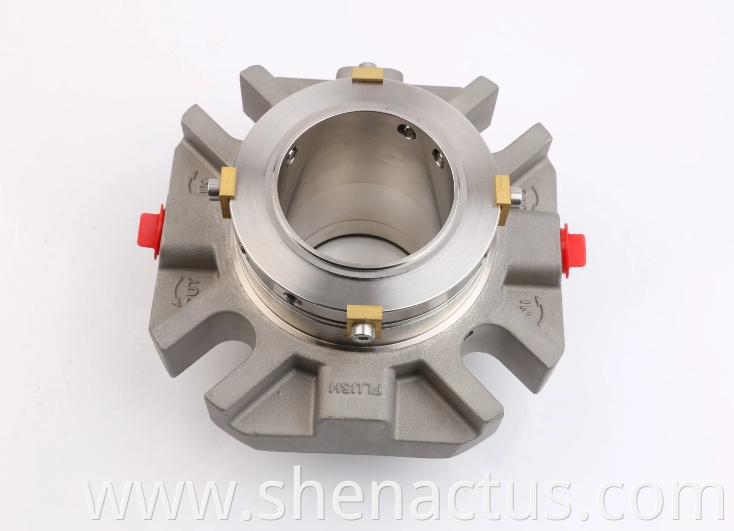

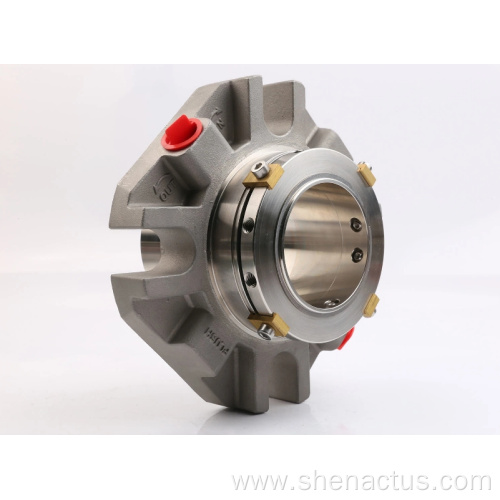

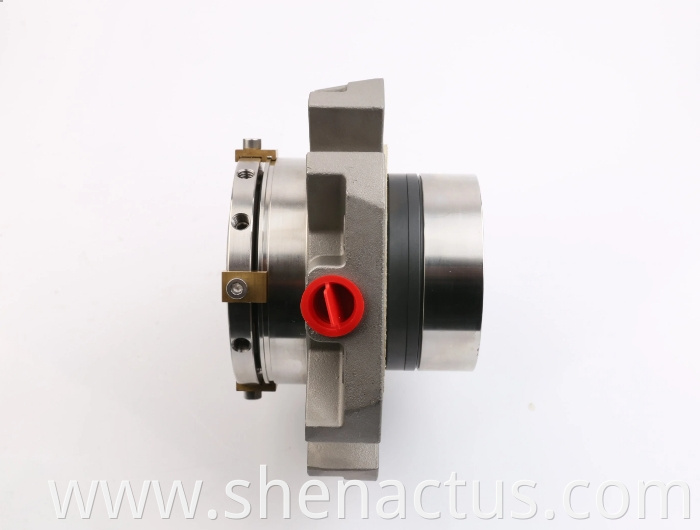

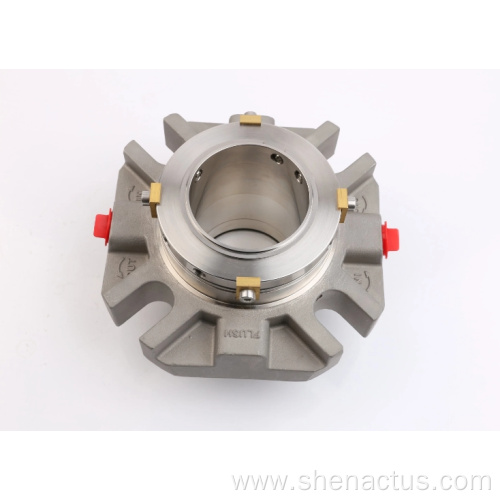

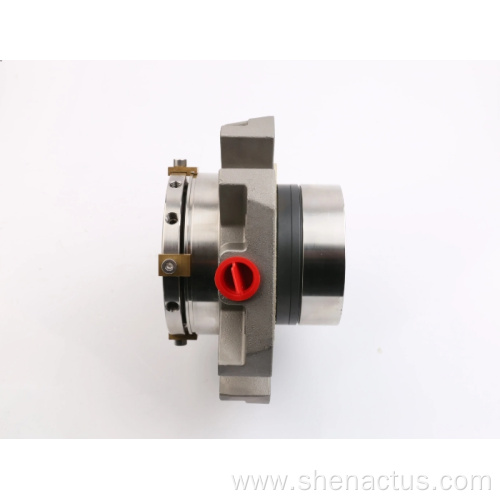

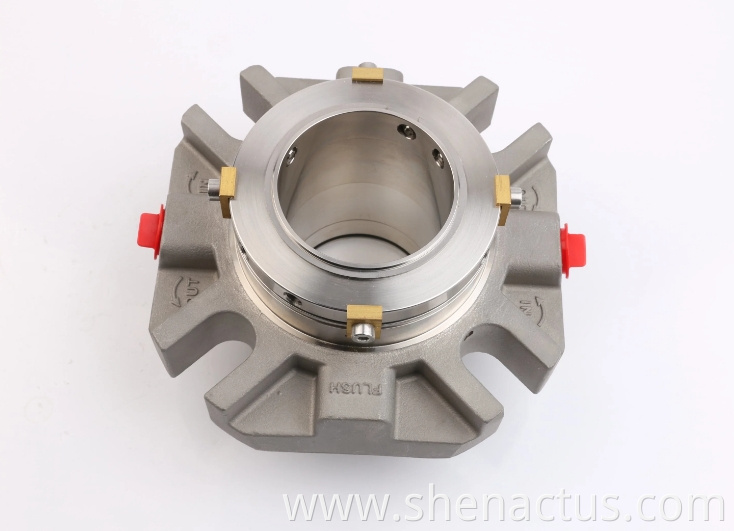

Cartridge Mechanical Seal, cartridge mechanical seal types, Cartridge Type Mechanical Seal
The double cartridge design offers several advantages for chemical pump applications. Firstly, it provides enhanced sealing performance, as the two sets of seal faces work together to create a reliable and leak-free seal. This is especially important in chemical pumping applications where the fluids being handled can be corrosive or hazardous.Additionally, the cartridge design simplifies installation and maintenance. The entire seal assembly is pre-assembled in a cartridge, which can be easily removed and replaced without the need for complex disassembly and reassembly of individual seal components. This reduces downtime and makes maintenance tasks more efficient.
Operation Parameters:
• Temperature: -20 ~ 220ºC
• Pressure: 0-25Bar
• Linear Speed: up to 25m/s
• Sealing Product: Acid, alkaline, low percentage of pulp, water, oil and other similar medi
Materials:
• Seal Face: SSIC/TC/CARBON
• Rubber: EPDM/ FKM /Aflas/ Kalrez
• Springs: ALLOY276
• Metal Parts: 316SS/DUPLEX/ALLOY276/904L
Key Features:
• Stationary face compensation technology.
• Solid seal structure reduces deformation at high temperature and low temperature conditions.
• Intergrated and Bi-directional diversion, sleeve with pump ring.
• High speed limits, up to 220 degree. No seal face drop or displacement.
• Higher pressure limits, up to 25 bar.
• Wet Part in Duplex steel, 904L, Alloy 276 avaiable.
• Suitable for API Plan 52/53A/53B/54.
Size(mm) NO Decription Material NO Decription Material 1 Inboard Rotary Face SSIC/TC 11 Spring Alloy 276 2 O-Ring EPR/FKM/Aflas/Kalrez 12 Outboard Stationary Face Carbon-316SS 3 Spring Alloy 276 13 O-Ring EPR/FKM/Aflas/Kalrez 4 Inboard Stationary Face Carbon/SSIC/TC 14 Circlip Alloy 276 5 O-Ring EPR/FKM/Aflas/Kalrez 15 O-Ring EPR/FKM/Aflas/Kalrez 6 Shaft Sleeve 316SS 16 Drive Screw 316SS 7 O-Ring EPR/FKM/Aflas/Kalrez 17 Clamp Ring 316SS 8 Gland 316SS 18 Setting Clip Brass 9 Outboard Rotary Face TC-316SS 19 Clip Screw 316SS 10 O-Ring EPR/FKM/Aflas/Kalrez 20 Gasket AF1
| φA | φB | C | φD | φDm | E | F | H |
| 25 | 105.0 | 62.0 | 43.0 | 60.0 | 33.1 | 53.4 | 13.2 |
| 28 | 105.0 | 62.0 | 46.0 | 60.0 | 33.1 | 53.4 | 13.2 |
| 30 | 105.0 | 67.0 | 48.0 | 65.0 | 33.1 | 53.4 | 13.2 |
| 32 | 110.0 | 70.0 | 50.0 | 65.0 | 33.1 | 53.4 | 13.2 |
| 33 | 110.0 | 70.0 | 50.0 | 65.0 | 33.1 | 53.4 | 13.2 |
| 35 | 113.0 | 72.0 | 53.0 | 68.0 | 33.1 | 53.4 | 13.2 |
| 38 | 135.0 | 80.0 | 56.0 | 78.0 | 33.1 | 53.4 | 13.2 |
| 40 | 135.0 | 80.0 | 58.0 | 78.0 | 33.1 | 53.4 | 14.2 |
| 42 | 135.0 | 80.0 | 61.0 | 78.0 | 33.1 | 53.4 | 14.2 |
| 43 | 135.0 | 80.0 | 61.0 | 78.0 | 33.1 | 53.4 | 14.2 |
| 45 | 138.0 | 82.5 | 62.5 | 79.0 | 33.1 | 53.4 | 14.2 |
| 48 | 138.0 | 82.5 | 65.5 | 82.0 | 33.1 | 53.4 | 14.2 |
| 50 | 150.0 | 87.0 | 68.0 | 85.0 | 33.1 | 53.4 | 14.2 |
| 53 | 150.0 | 97.0 | 72.0 | 95.0 | 33.1 | 53.4 | 14.2 |
| 55 | 150.0 | 97.0 | 73.0 | 88.0 | 33.1 | 53.4 | 18.0 |
| 60 | 157.0 | 102.0 | 78.0 | 100.0 | 33.1 | 53.4 | 18.0 |
| 65 | 165.0 | 109.0 | 84.8 | 107.0 | 33.1 | 53.4 | 18.0 |
| 70 | 178.0 | 118.5 | 93.0 | 116.0 | 33.1 | 53.4 | 18.0 |
| 75 | 190.0 | 129.0 | 100.0 | 125.0 | 44.1 | 63.9 | 18.0 |
| 80 | 195.0 | 135.0 | 106.4 | 131.0 | 44.1 | 63.9 | 18.0 |
| 85 | 198.0 | 139.0 | 109.5 | 135.0 | 44.1 | 63.9 | 22.0 |
| 90 | 205.0 | 145.0 | 115.9 | 142.0 | 44.1 | 63.9 | 22.0 |
| 95 | 208.0 | 148.0 | 119.1 | 145.0 | 44.1 | 63.9 | 22.0 |
| 100 | 218.0 | 154.0 | 125.4 | 151.0 | 44.1 | 63.9 | 22.0 |
Product Categories : Mechanical Seals > Double Cartridge Mechanical Seals
